Componente - YSR-12-12 Festo

Descrizione tecnica

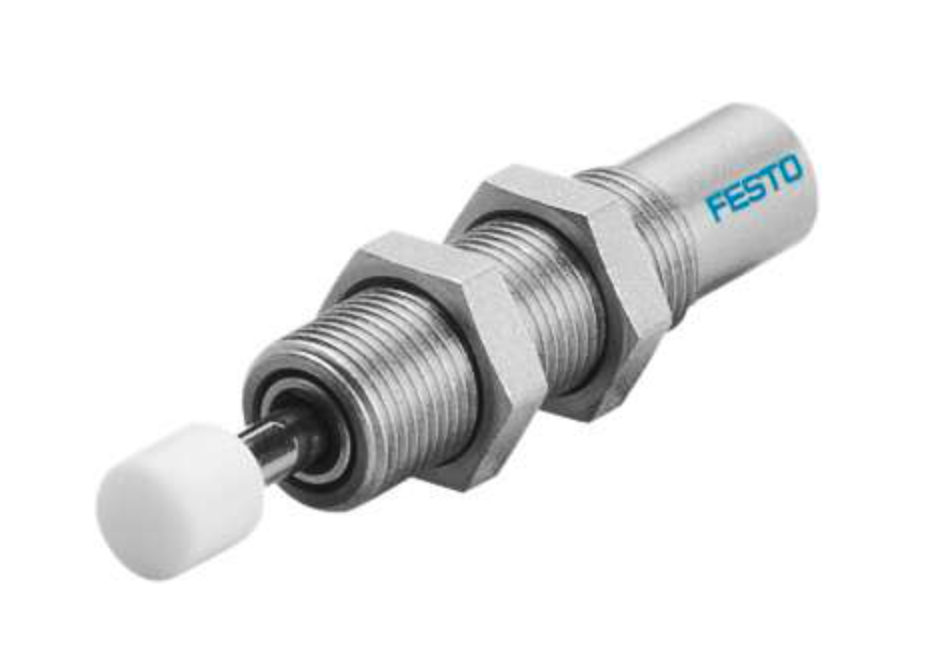

The Festo YSR-12-12-C pneumatic shock absorber is engineered to provide efficient impact damping in industrial settings. Key Features: Size: 12 Stroke Length: 12 mm Cushioning: Self-adjusting Mounting Position: Optional Position Detection: Not available Maximum Impact Speed: 3 m/s Reset Time at Room Temperature: 0.2 s Reset Time at Minimum Ambient Temperature: 1 s Mode of Operation: Pushing, single-acting Corrosion Resistance Class (CRC): 2 - Moderate corrosion stress LABS (PWIS) Conformity: VDMA24364-B2-L Ambient Temperature Range: -10°C to 80°C Cushioning Length: 12 mm Maximum Stop Force: 1000 N Maximum Energy Absorption per Stroke: 10 J Maximum Energy Absorption per Hour: 36,000 J Maximum Residual Energy: 0.05 J Reset Force: 5 N Minimum Insertion Force: 35 N Product Weight: 74 g Load Range: 45 kg Type of Mounting: Via lock nut Materials: Seals: NBR Housing: Galvanized steel Piston Rod: High-alloy steel Compliance: RoHS-compliant This shock absorber is suitable for applications requiring precise impact damping and is designed for easy integration into various systems.
