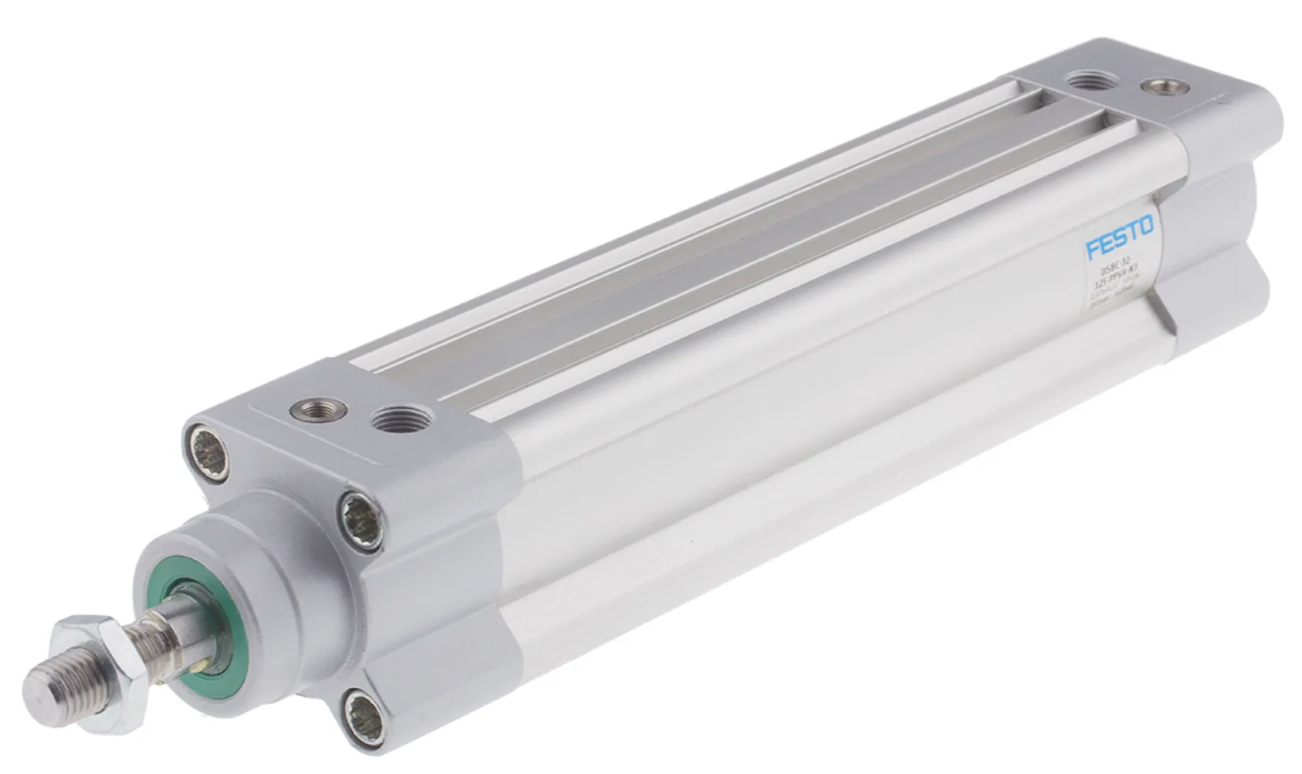

Componente - DSBC-Q-32-125-PPVA Festo

Descrizione tecnica

The Festo DSBC-Q-32-125-PPVA is a high-performance pneumatic cylinder designed for precision and durability in industrial automation systems. Technical Specifications: Piston Diameter: 32 mm Stroke Length: 125 mm Operating Pressure: 0.6 to 12 bar (0.06 to 1.2 MPa) Operating Medium: Compressed air in accordance with ISO 8573-1:2010 [7:4:4] Mode of Operation: Double-acting Cushioning: Self-adjusting pneumatic end-position cushioning (PPS) at both ends Mounting Position: Any position Conformance: ISO 15552 Piston Rod Thread: M10x1.25 Pneumatic Connection: G1/8 Ambient Temperature Range: -20°C to 80°C Corrosion Resistance Class (CRC): 2 - Moderate corrosion stress Impact Energy in End Positions: 0.4 J Cushioning Length: 17 mm Theoretical Force at 6 bar (Advancing): 483 N Theoretical Force at 6 bar (Retracting): 415 N Moving Mass: 223 g Product Weight: 803 g Materials: Cover Material: Die-cast aluminum, coated Piston Seal Material: TPE-U(PU) Piston Rod Material: High-alloy steel Piston Rod Wiper Material: TPE-U(PU) Buffer Seal Material: TPE-U(PU) Cushion Piston Material: POM Cylinder Barrel Material: Wrought aluminum alloy, smooth-anodized Nut Material: Steel, galvanized Bearing Material: POM Flange Screws Material: Steel, galvanized Features: Self-Adjusting Pneumatic Cushioning (PPS): Adapts to changes in load and speed, reducing setting time and enhancing process reliability. ISO 15552 Conformance: Ensures compatibility with international standards for easy integration into existing systems. Versatile Mounting Options: Suitable for various mounting positions to accommodate different installation requirements. Durable Construction: High-quality materials and robust design for long service life and minimal maintenance. This cylinder is ideal for applications requiring precise control and adaptability, such as in packaging, assembly, and material handling systems.
