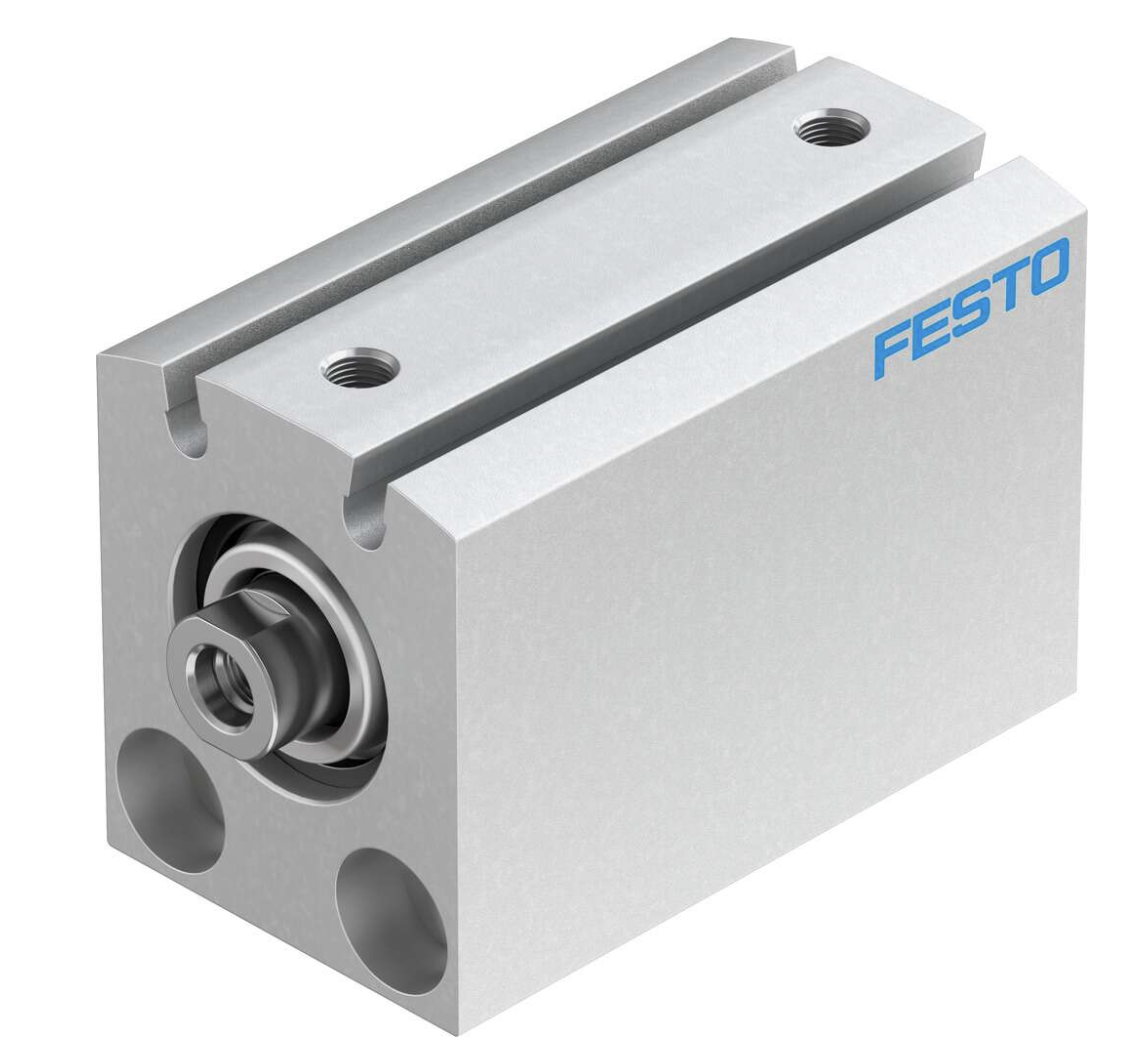

Componente - ADVC-20-25-I-P-A Festo

Descrizione tecnica

The Festo ADVC-20-25-I-P-A is a high-performance short-stroke cylinder engineered for applications requiring precise and compact linear motion. Its robust construction and advanced features make it suitable for a wide range of industrial automation tasks. Technical Specifications: Stroke Length: 25 mm Piston Diameter: 20 mm Mode of Operation: Double-acting Cushioning: Elastic cushioning rings/pads at both ends Mounting Position: Any position Structural Design: Piston with piston rod Position Sensing: Compatible with proximity sensors Operating Pressure: 0.1 MPa to 1 MPa (1 bar to 10 bar; 14.5 psi to 145 psi) Operating Medium: Compressed air as per ISO 8573-1:2010 [7:4:4] Ambient Temperature Range: -20°C to 80°C Theoretical Force at 6 bar (87 psi): Advancing Stroke: 189 N Retracting Stroke: 141 N Moving Mass: 38 g Product Weight: 171 g Housing Material: Wrought aluminum alloy, anodized Piston Rod Material: High-alloy steel Seals Material: TPE-U(PU) Pneumatic Connection: M5 Corrosion Resistance Class (CRC): 1 - Low corrosion stress LABS (PWIS) Conformity: VDMA24364-B1/B2-L Note on Operating and Pilot Media: Operation with oil lubrication is possible and required for further use This cylinder is designed for versatility and durability, making it an excellent choice for applications where space is limited but high performance is essential.
