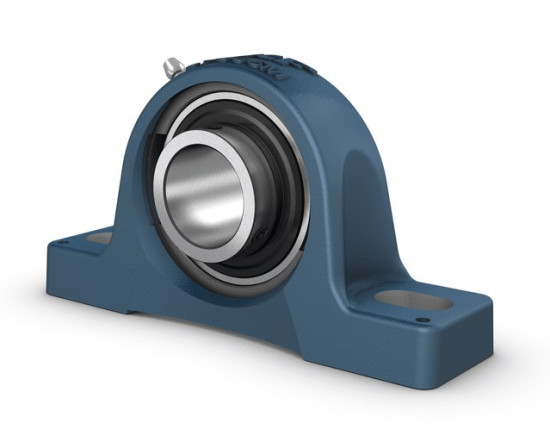

Palier - SY 30 TF SKF

Description technique

The SKF SY 30 TF pillow block bearing unit is engineered to provide dependable support for rotating shafts in demanding environments. Its design incorporates a cast iron housing and a set screw locking collar, making it suitable for applications where shaft misalignment and heavy radial loads are prevalent. Technical Specifications: Shaft Diameter (d): 30 mm Housing Material: Cast iron Bearing Type: Ball bearing unit Locking Mechanism: Set screw Centre Height (h): 42.9 mm Housing Overall Width (b): 40 mm Centre Distance Between Bolt Holes (a): 117.5 mm Bearing Width (B): 38.1 mm Mounting Hole Diameter: 12 mm Length (L): 152 mm Depth (D): 40 mm Relubrication Feature: Yes Expansion Type: Non-expansion This bearing unit is ideal for applications requiring high load capacity and durability, such as conveyors, agricultural machinery, and industrial equipment.
