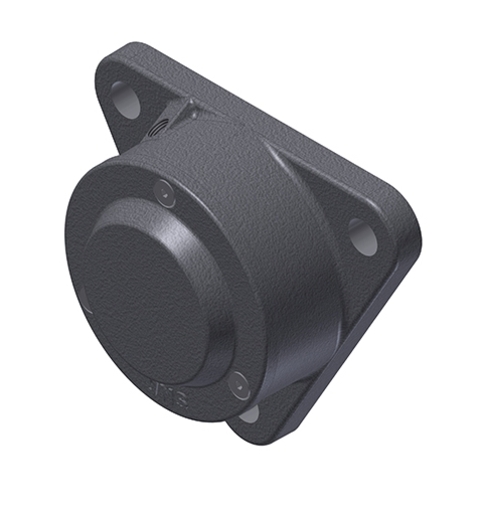

Palier - FNL 508 A (722508 DA) neu

Description technique

The SKF FNL 508 A is a robust, non-split flanged bearing housing crafted from high-quality cast iron, ensuring durability and resistance to wear. It is specifically designed for shaft end applications, providing a secure and stable mounting solution for bearings. Key Features: Housing Type: Flanged, non-split design for enhanced structural integrity. Material: High-strength cast iron for durability and longevity. Flange Design: Triangular flange with three bolt holes for secure attachment. Seal Type: Equipped with a lip seal to effectively retain lubricant and prevent contaminants. Lubrication: Designed for grease lubrication, with provisions for relubrication. Technical Specifications: Diameter of Bearing Seat: 80 mm (3.15 inches) Pitch Diameter of Bolt Holes: 140 mm (5.512 inches) Attachment Bolt Diameter: 12 mm (0.472 inches) Housing Material: Cast iron Seal Type: Lip seal Lubrication Feature: Grease lubrication with provisions for relubrication Weight: Approximately 2.4 kg (5.512 lbs) Dimensions: Shaft Diameter: 35 mm Housing Outside Diameter: 67 mm Housing Width: 12 mm Bolt Hole Center Distance: 140 mm This housing is ideal for applications where a reliable and maintenance-friendly bearing support is essential. Its design facilitates easy mounting and alignment, contributing to the overall efficiency and longevity of the bearing arrangement.
